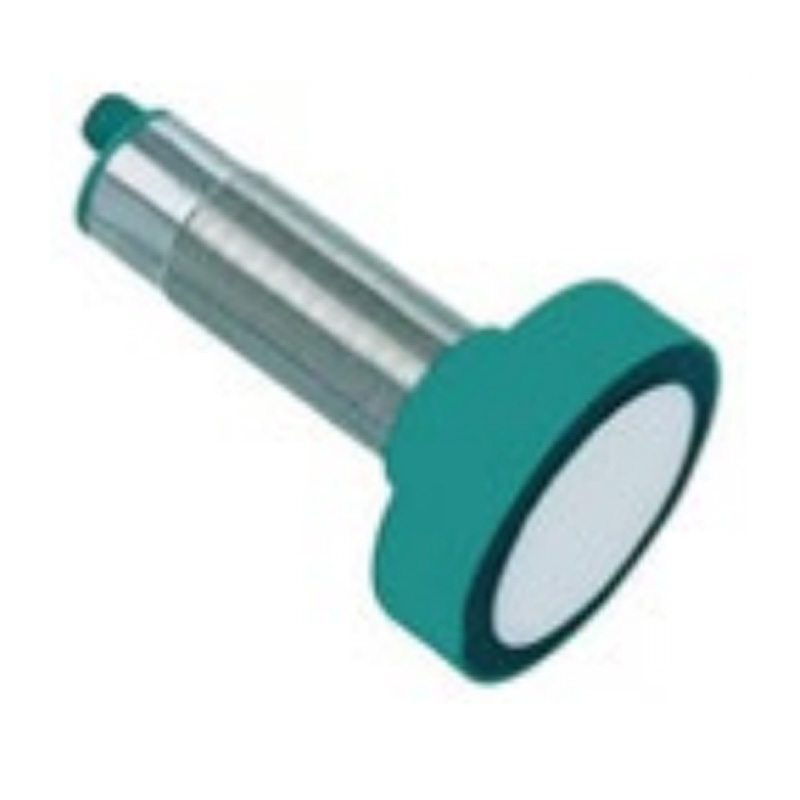

Product 3D Image Get couponsУльтразвуковой датчик в основном состоит из передающей части, приемной части, управляющей части и части питания.
Передающая часть состоит из передатчика и преобразователя. Преобразователь преобразует энергию, генерируемую колебаниями пьезоэлектрического чипа под воздействием напряжения, в ультразвуковые волны, а передатчик излучает сгенерированные ультразвуковые волны.
Приемная часть состоит из преобразователя и усилительной схемы. Преобразователь принимает отраженные ультразвуковые волны, и благодаря механической вибрации, вызванной приемом ультразвуковых волн, преобразователь может преобразовывать механическую энергию в электрическую, которая затем усиливается усилительной схемой.
Управляющая часть управляет всей операционной системой: сначала она управляет передатчиком, чтобы он излучал ультразвуковые волны, затем управляет приемником, чтобы определить, была ли полученная ультразвуковая волна излучена им самим, и, наконец, определяет силу полученной ультразвуковой волны.
Блок питания является источником питания для всей системы. Под управлением блока питания и управляющей части передатчик и приемник работают вместе, чтобы обеспечить необходимые функции датчика.
Product Model |
LF91C-AD4-H5 | LF91C-BD4-H5 | LF91C-AD6-H5 | LF91C-BD6-H5 | LF91C-ADI-H5 | LF91C-BDI-H5 | ||||||||||||||||||||||||||||
LF91C-AD5-H5 | LF91C-BD5-H5 | LF91C-AD7-H5 | LF91C-BD7-H5 | LF91C-ADU-H5 | LF91C-BDU-H5 | |||||||||||||||||||||||||||||
Detection Range |
200...4000mm | 350...6000mm | 200...4000mm | 350...6000mm | 200...4000mm | 350...6000mm | ||||||||||||||||||||||||||||
Blind Zone |
0...200mm | 0...350mm | 0...200mm | 0...350mm | 0...200mm | 0...350mm | ||||||||||||||||||||||||||||
Transducer Frequency |
Approx.85KHz | Approx.65KHz | Approx.85KHz | Approx.65KHz | Approx.85KHz | Approx.65KHz | ||||||||||||||||||||||||||||
Response Time |
Approx.25ms | Approx.650ms | Minimum145ms | Minimum285ms | Minimum145ms | Minimum285ms | ||||||||||||||||||||||||||||
Switching Frequency (Standard Target Plate: 100mm × 100mm) |
≤1.5 Hz | ≤0.8Hz | ≤1 Hz | ≤0.5 Hz | 100mm* 100mm | |||||||||||||||||||||||||||||
Output type |
D4: NPN, NO/NC selectable |
D6: Two PNP switch outputs, NO/NC selectable |
DI 4...20mA current output | |||||||||||||||||||||||||||||||
D5: PNP, NO/NC selectable |
D7: Two NPN switch outputs, NO/NC selectable |
DU 0-10V voltage output | ||||||||||||||||||||||||||||||||
Rated Operating Current |
200mA (short-circuit protection / overload protection) |
2×100mA (short-circuit protection / overload protection) |
≤900 mW | |||||||||||||||||||||||||||||||
Operating Voltage |
10–30V DC, ripple 10% |
|||||||||||||||||||||||||||||||||
Repeat Accuracy |
≤0.5% | ≤0. 1% |
±0.1% of full-scale value |
|||||||||||||||||||||||||||||||
Range Adjustment |
Adjustable far/near range via adjustment wire |
|||||||||||||||||||||||||||||||||
Protection Class |
IP65 | |||||||||||||||||||||||||||||||||
Connection Method |
H5 (5-pin) M12 connector / 2m PVC cable |
|||||||||||||||||||||||||||||||||
Green LED |
Always ON: powered on Flashing: target detected in setting mode |
|||||||||||||||||||||||||||||||||
Yellow LED |
Flashing: switch state indication In setting mode: target detected |
|||||||||||||||||||||||||||||||||
Red LED |
Always ON: error Flashing: target not detected |
