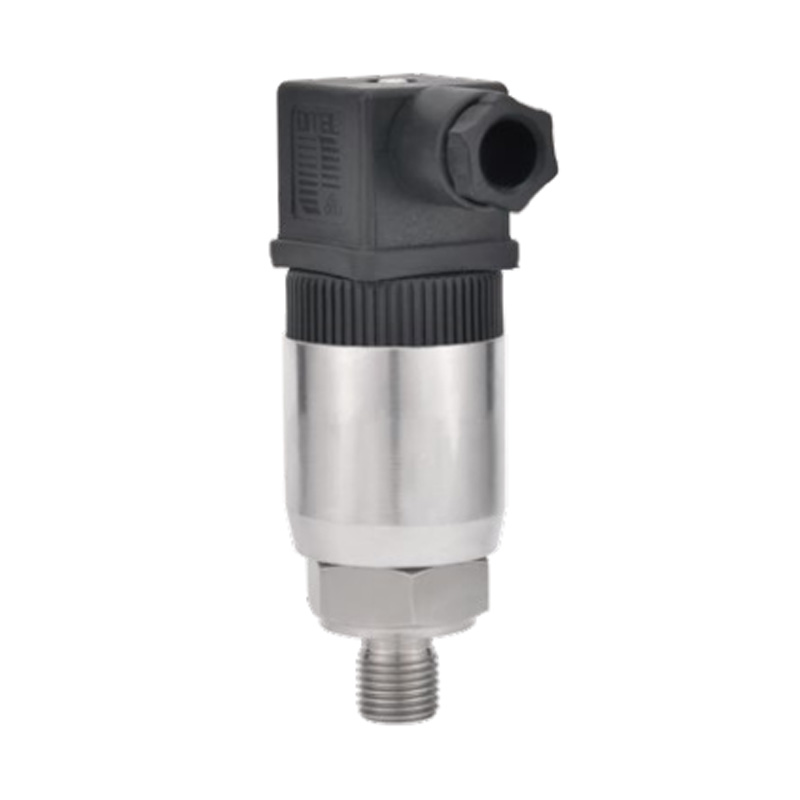

PN50B is a rugged and anti-impact diffusion silicon pressure transmitter.
Wide selection range and compact design
Suitable for harsh environments with high reliability
Wide measuring range (0…1000 bar)
Available for gauge pressure and absolute pressure
Ideal for machinery, hydraulic and pneumatic systems, locomotives, and pressure control
Диапазон измерения: Настраивается в соответствии с требованиями пользователя
Предел перегрузки: 1,5× диапазон измерения
Точность: 0,5%
Линейность: ±0,2%
Повторяемость: ≤ ±0,1% FS
Стабильность: В пределах диапазона точности в течение 1 года
Влияние температуры: < ±0,02% FS/K
Время отклика: < 1 мс (10...90% FS)
Источник питания: 10...30 В постоянного тока (3-проводной: 14...30 В)
Сопротивление нагрузки:
≥10 кОм (0...10 В)
≥5 кОм (1...5 В)
≤(UB-10) В / 0,02 А (4...20 мА)
Потребляемая мощность: Ток сигнала (2-проводной); 8 мА (3-проводной)
Электрическая защита: Защита от перегрузки / обратной полярности
Температура окружающей среды: -30...85°C
Температура среды: -25...80°C
Температура хранения: -30...100°C
Степень защиты: IP65
Материал корпуса: Нержавеющая сталь 304
Детали, контактирующие с измеряемой средой: Нержавеющая сталь 304
Уплотнение: FKM (Viton)
Вес: 0,10 кг

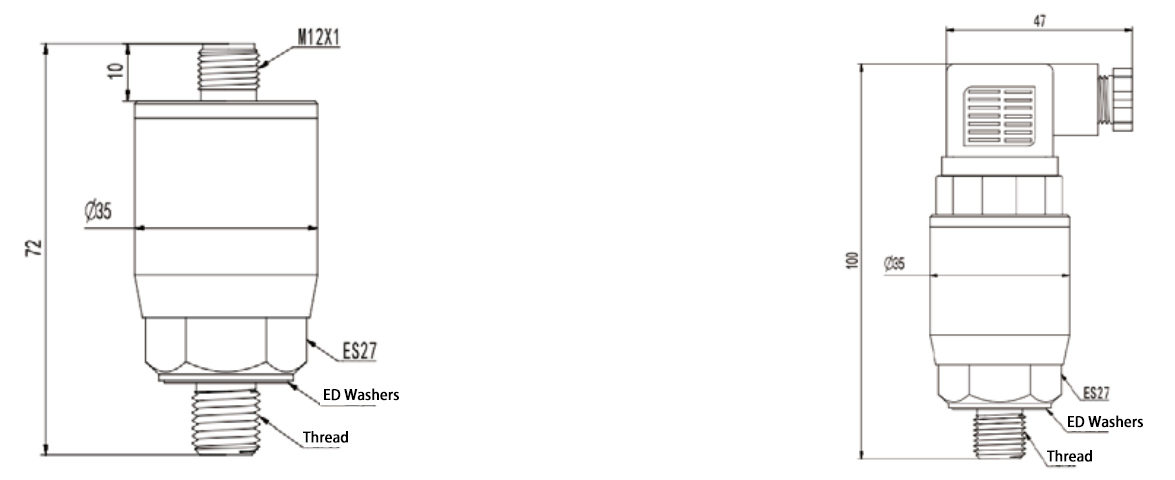

Диапазон |
Код манометрического давления |
Код абсолютного давления |
0--1бар |
ГБ001 |
AB001 |
0--2бар |
ГБ002 |
AB002 |
0--4бар |
ГБ004 |
AB004 |
0--10бар |
ГБ010 |
АБ010 |
0--20бар |
ГБ020 |
АБ020 |
0--40бар |
ГБ040 |
АБ040 |
0--60бар |
ГБ060 |
АБ060 |
0--100бар |
ГБ100 |
АБ100 |
0--160бар |
ГБ160 |
АБ160 |
0--200бар |
ГБ200 |
АБ200 |
0--250бар |
ГБ250 |
АБ250 |
0--400бар |
ГБ400 |
АБ400 |
0--600бар |
ГБ600 |
АБ600 |
PN50B- |
ГБ... |
С |
Г4 |
ЧАС |
4 |
Б |
Б |
Подробный |
PN50B- |
|
|
|
|
|
|
|
Прочный противоударный датчик давления PN50B |
|
ГБ... |
|
|
|
|
|
|
Диапазон манометрического давления: ___ бар (см. таблицу диапазонов) |
|
АБ... |
|
|
|
|
|
|
Диапазон абсолютного давления: ___ бар (см. таблицу диапазонов) |
|
Врач общей практики... |
|
|
|
|
|
|
Пользовательский диапазон: ___ кПа (определяется пользователем) |
|
|
|
|
|
|
|
|
Индивидуальный ассортимент |
|
|
С |
|
|
|
|
|
Класс точности: 0,5 |
|
|
|
Г4 |
|
|
|
|
Резьба технологического соединения: G1/4 |
|
|
|
Г2 |
|
|
|
|
Резьбы технологических соединений: Г1/2 |
|
|
|
N4 |
|
|
|
|
Резьбы технологических соединений: NPT1/4 |
|
|
|
N2 |
|
|
|
|
Резьбы технологических соединений: NPT1/2 |
|
|
|
М2 |
|
|
|
|
Резьбы технологических соединений: М20* 1,5 |
|
|
|
П |
|
|
|
|
Плоская диафрагма > G1/2 |
|
|
|
|
|
|
|
|
Пользовательские темы |
|
|
|
|
ЧАС |
|
|
|
H = Наружная резьба / K = Внутренняя резьба |
|
|
|
|
|
4 |
|
|

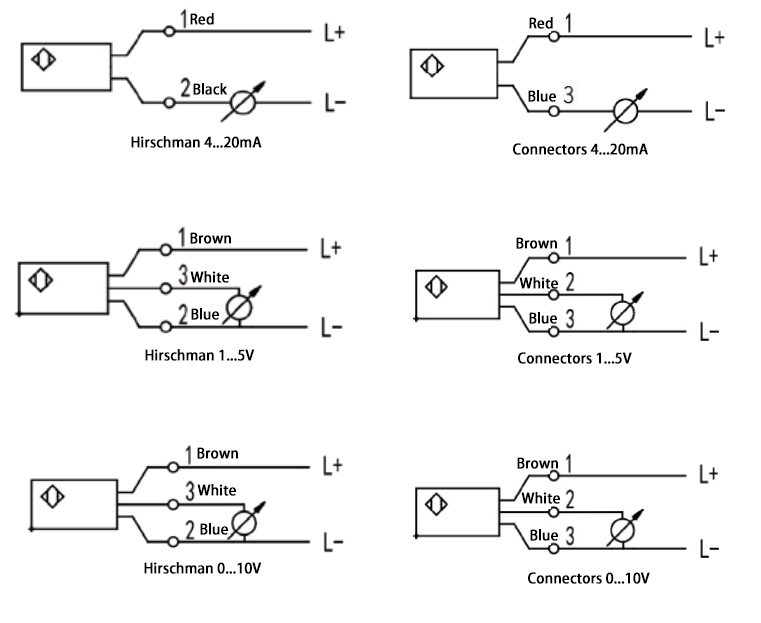

Выходной сигнал 4-20 мА |
|
|
|
|
|
1 |
|
|
Выходной сигнал 1-5 В |
|
|
|
|
|
0 |
|
|
Выходной сигнал 0-10 В |
|
|
|
|
|
|
Б |
|
B: Разъем Хиршмана |
|
|
|
|
|
|
С |
|
C: штекер M12*1 |
|
|
|
|
|
|
|
Б |
Нет: нет демпфирующего штифта, нет радиатора |
|
|
|
|
|
|
|
З |
Z: Демпфирующий штифт S: Радиатор (опционально) |
Примечание: Таблица выбора представлена только для справки. Коды продуктов будут присвоены на основе выбранных параметров. |
F10- |
А |
Отображать |
F10- |
|
Параметры головы |
|
А |
Выход 4–20 мА |
|
Б |
Выход 1–5 В |
|
С |
Выход 0–10 В |
Электронное устройство отображения сигналов датчиков Диапазон отображения регулируется с помощью кнопок настройки Свободно программируется микропроцессором Нет необходимости в настройке на месте Совместимость с датчиками с выходом 4–20 мА Степень защиты: IP55 Опционально для моделей Hirschmann |
