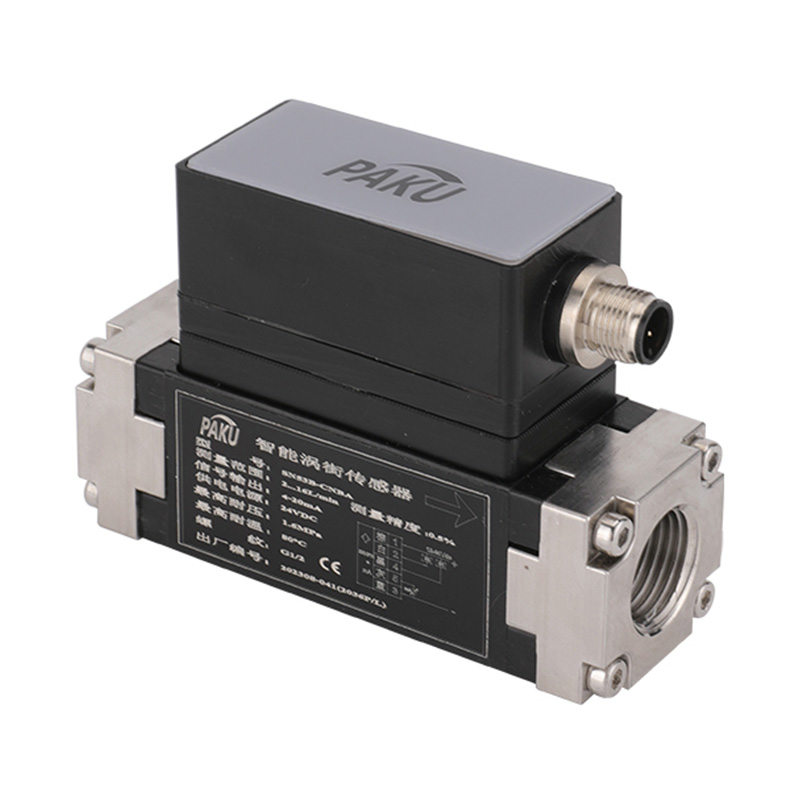

Product 3D Image Get couponsИнтеллектуальный вихревой датчик температуры серии SN53B основан на принципе вихревого явления Кармена. Вихревое явление Кармена — это явление, наблюдаемое и изученное венгерско-американским ученым фон Карменом в 1911 году: когда жидкость обтекает нежидкий линейный объект, с обеих сторон объекта, слева и справа, образуются пары вихрей, расположенных попеременно и вращающихся в противоположных направлениях, что и называется вихревым явлением. Это вихревое образование имеет цикл, чередующиеся изменения в характере частоты изменений пропорциональны скорости жидкости, что является явлением вихря Камена, конкретная зависимость для отношения Sr = fd / V. Вихревой расходомер использует это явление, характер вихревого расходомера заключается в измерении частоты отрыва вихрей для определения скорости жидкости или расхода поддержки расходомера. Имеет такие преимущества, как небольшой размер, простота настройки и т. д., встроенная интеллектуальная схема, возможность произвольной настройки верхнего и нижнего пределов значения сигнализации, возможность удаленного мониторинга условий потока в режиме реального времени, полный набор параметров для произвольной настройки на месте.
Еще один высокоточный датчик для измерения температуры, сигнал обрабатывается задней схемой обработки и преобразуется в стандартный промышленный электрический сигнал выхода и отображения, можно произвольно установить верхний и нижний пределы значения температурной сигнализации, можно удаленно контролировать температурные условия в реальном времени, полные параметры произвольных настроек на месте.
Подходящие носители | Жидкость (но с вязкостью 3 мПа·с [3CP] или менее) | ||||||
Диапазон расхода | 0,5--4 л/мин | 2--16 л/мин | 5--40 л/мин | 10--100 л/мин | 20--200 л/мин | ||
Средняя температура | 0-90°C (без замерзания и конденсации) | ||||||
Дисплейный блок | Мгновенный расход: л/мин Накопленный расход: л/мин | ||||||
Точность | Отображаемое значение: ±5% Аналоговый выход: ±3 | ||||||
Повторяемость | ±1% | ||||||
Сопротивление давлению | 15 бар | ||||||
Потеря давления | Ниже 45 кПа при максимальном расходе | ||||||
Коммутационный выход | Выход | 2-канальный выход PNP или NPN | |||||
Максимальный ток нагрузки | 80 мА | ||||||
Supply Voltage | DC12-24V ±10% | ||||||
Response Time | 0.5s/1s/2s | ||||||
Output Protection | Short circuit protection | ||||||
Output Modes | Flow rate | Hysteresis mode, upper and lower limit comparison mode, totalised output mode, totalised pulse output mode selectable | |||||
Temperature | Hysteresis mode, upper and lower limit comparison mode selectable | ||||||
Analogue outputs | Voltage Output | Output voltage:1~5V Output impedance:1kΩ | |||||
Current Output | Output current:4~20mA Maximum load impedance:300Ω at DC12V, 600Q at DC24V |
Needle | Cable | Signal |
1 | Brown | Power supply |
2 | White | Switch 2 |
3 | Blue | GND |
4 | Black | Switch 1 |
5 | Grey | mA/pulse P |
Needle | Cable | Signal |
1 | White | Flow mA |
2 | Brown | Power supply + |
3 | Green | Temperature mA |
4 | Yellow | T1 temperature switching quantity |
5 | Grey | |
6 | Pink | |
7 | Blue | Power supply - |
8 | Red | L1 switching quantity |
SN53B- | A | P | A | B | T | Detailed description | ||||||||||||
SN53B- | SN53B Series Intelligent Vortex Sensor | |||||||||||||||||
B | Model B: Plastic body, stainless steel two-end interface with display | |||||||||||||||||
B1 | Model B1: Plastic body with stainless steel interface without display (no switching function) | |||||||||||||||||
P | PNP output (for models with display only) | |||||||||||||||||
N | NPN output (for models with display only) | |||||||||||||||||
A | Flow rate range: 0.5-4L/min Thread: G3/8 female thread | |||||||||||||||||
A1 | Flow rate range: 0.5-4L/min Thread: RC3/8 female thread | |||||||||||||||||
B | Flow rate range: 2-16L/min Thread: G1/2 female thread | |||||||||||||||||
B1 | Flow rate range: 2-16L/min Thread: RC1/2 female thread | |||||||||||||||||
C | Flow rate range: 5-40L/min Thread: G1/2 female thread | |||||||||||||||||
C1 | Flow rate range: 5-40L/min Thread: RC1/2 female thread | |||||||||||||||||
D | Flow rate range: 10-100L/min Thread: G1 female thread | |||||||||||||||||
D1 | Flow rate range: 10-100L/min Thread: RC1 female thread | |||||||||||||||||
F | Flow rate range: 10-100L/min Thread: G3/4 female thread | |||||||||||||||||
F1 | Flow rate range: 10-100L/min Thread: RC3/4 female thread | |||||||||||||||||
Optional without display | A | 1 analogue 4-20MA output (flow rate) | ||||||||||||||||
B | 1 analogue 1-5V output (flow rate) | |||||||||||||||||
C | RS485 communication (flow rate) | |||||||||||||||||
S | One way 4-20mA + one way RS485 output for flow and temperature | |||||||||||||||||
Unselectable without display | D | 2 analogue 4-20MA outputs (temperature, flow) | ||||||||||||||||
E | 2 analogue 1-5V outputs (temperature, flow) | |||||||||||||||||
E1 | Switching: two switching channels for flow rate Analogue : One 4-20MA output for flow rate |
|||||||||||||||||
E2 | Switching quantity: flow rate two switching quantity Analogue : 1-5V output for flow rate |
|||||||||||||||||
F1 | Switching quantity: one switch for temperature and one switch for flow rate Analogue: 4-20MA output for flow rate one way |
|||||||||||||||||
F2 | Switching quantity: temperature and flow rate each one switching quantity Analogue: 1-5V output for flow rate all the way |
|||||||||||||||||
F3 | Switching quantity :Temperature, flow rate all the way switching quantity Analogue : Temperature 4-20MA output all the way |
|||||||||||||||||
F4 | Switching quantity: temperature, flow rate each way switching quantity Analogue : 1-5V output for temperature all the way |
|||||||||||||||||
G1 | Switching quantity: temperature, flow rate each one way switching quantity Analogue : 4-20MA output for each of temperature and flow rate |
|||||||||||||||||
G2 | Switching quantity: temperature, flow rate each one way switching quantity Analogue : 1-5V output for each of temperature and flow rate |
|||||||||||||||||
R1 | Количество коммутаций: два количества коммутаций для связи по RS485 для измерения расхода | |||||||||||||||||
Р2 | Количество коммутаций: два количества коммутаций для связи по температуре RS485 |
|||||||||||||||||
Р3 | Количество переключателей: по одному переключателю для каждой температуры и расхода. Связь RS485. |
|||||||||||||||||
Нет температуры, нет необходимости выбирать | Т | Диапазон температур по умолчанию: 0–100 °C | ||||||||||||||||
Т… | Индивидуальный диапазон температур |
